PRIMARY CATEGORY → KERBEROS DELEGATIONS
RBCD → Resource-based Constrained Delegation
RBCD-related Attributes
msDS-AllowedToActOnBehalfOfOtherIdentity
This attribute was introduce with Windows Server 2012
This implies that RBCD only works when the Domain Controller Functionality Level (DCFL) is Windows Server 2012 or higher

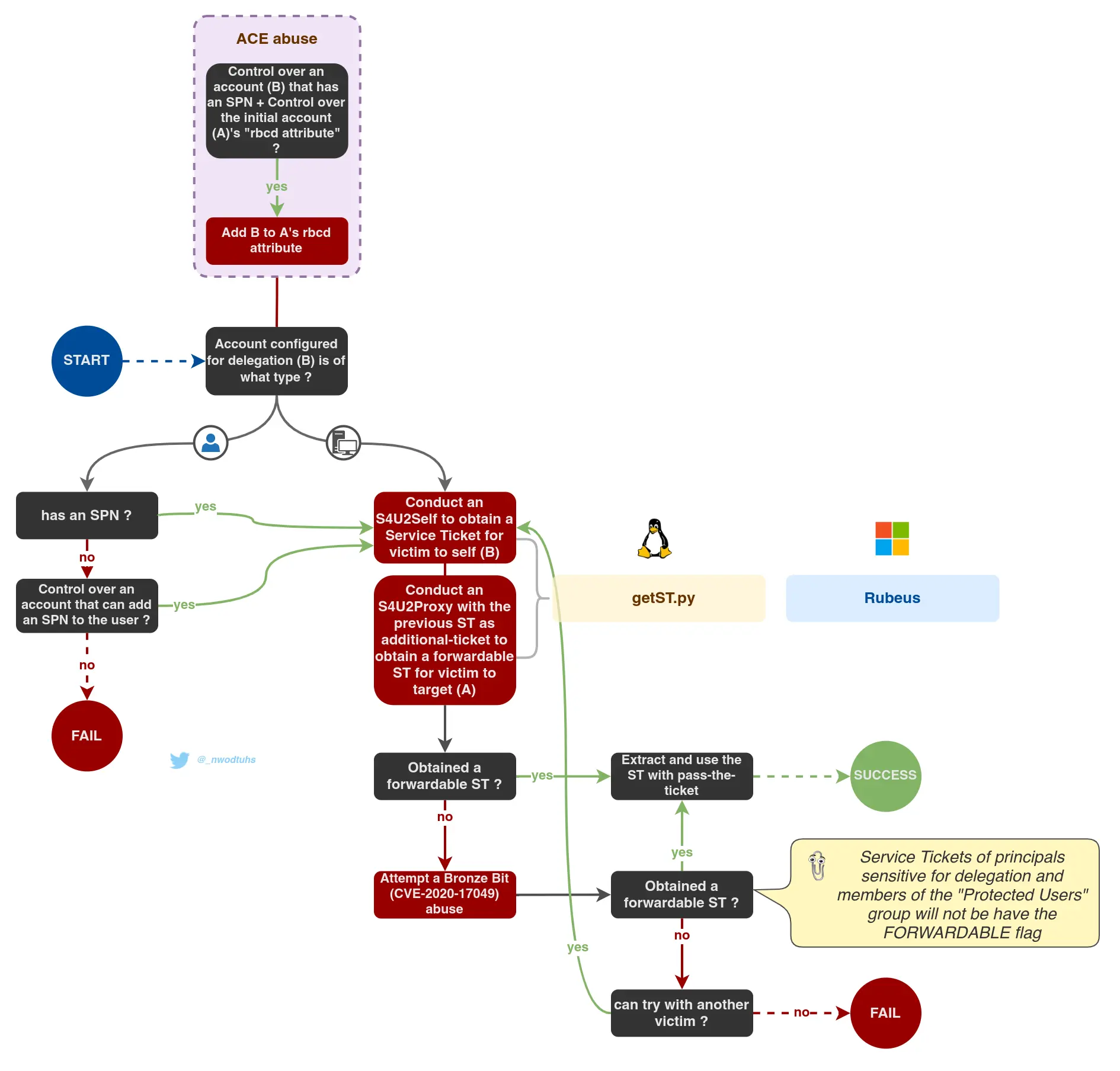

Workflow
Zoom In
RBCD
Let us present a case with the following elements →
- Service A → Service Account for which RBCD is configured
- Administrator → User Account that is impersonated
- User X → User Account that has GenericWrite ACE on the Service Account A
- Service B → Computer Account that User X joins to the domain
To configure RBCD on a service account (Service A), is mandatory that the attacker has control over an account (User X) that has an ACE such as GenericWrite or GenericAll on that service account (Service A)
Therefore, an attacker could use that controlled account (User X) to append the SID of another compromised service account (Service B) to the msDS-AllowedToActOnBehalfOfOtherIdentity attribute of the Service A
With that, the newly added Computer Account (Service B) can perform a Full S4U (S4USelf + S4U2Proxy) to request a Service Ticket, on behalf of the Administrator user, to the Service A
Then, the attacker can carry out a PtT with the S4U2Proxy Service Ticket
Adding a Computer Account to the Domain
The standard workaround when an attacker does not have control over a service account to perform a Full S4U, is to leverage the Domain-Level MachineAccountQuota (MAQ) attribute of a controlled user account (User X) to add an arbitrary computer account (Service B) to the domain
INFO
This attribute usually allows a non-privileged user account to add up to 10 computer accounts to an Active Directory domain
- addcomputer.py
addcomputer.py -computer-name 'SERVICE_B$' -computer-pass 'SERVICE_CPASSWD!' 'domain.local/USER_X:USER_XPASSWD!'Setting up RBCD on the Target Service Account
Microsoft patched the ability of a service account to configure RBCD for itself, i.e. the attacker did not need a domain account that had an EACs such as GenericWrite on the service account for which RBCD was to be configured
However, an attacker currently needs control over a domain account that has the mentioned EACs (GenericWrite, GenericAll, WriteProperty…) on the service account (Service A)
So, we append the SID of the newly added computer account (Service B) to the msDS-AllowedToActOnBehalfOfOtherIdentityattribute of the Service A in order to perform a Full S4U with Service B
- rbcd.py
rbcd.py -delegate-to 'SERVICE_B$' -delegate-from 'SERVICE_A' -action write 'domain.local/USER_X:USER_XPASSWD!'Full S4U (S4U2Self + S4U2Proxy)
Once RBCD is configured for the given service account (Service A), an attacker could perform a Full S4U from the controlled computer account to request a Service Ticket, on behalf of the Administrator user, to Service A
The attacker can request any Service Class of the Target, i.e. any SPN from the Service Account A, such as HOST/SERVICE_A, CIFS/SERVICE_A
- getST.py
getST.py -spn 'HTTP/SERVICE_A' -impersonate 'Administrator' -dc-ip '<DC>' 'domain.local/SERVICE_B:SERVICE_BPASSWD!'Resources
The Hacker Recipes: Resource-based Constrained Delegation - RBCD
