WPAD SPOOFING

2 min read

PRIMARY CATEGORY → MITM & COERCED AUTHS

Theory

WPAD

The Web Proxy Auto-Discovery Protocol ( WPAD ) allows a web client to automatically discover a proxy configuration

To do so, the client search for a WPAD.dat file in the following ways →

  • DHCP ( 252 Option )
  • DNS → Query name to the Primary DNS Server trying to resolve wpad or wpad.domain.internal
  • ANYCAST Protocols as a fallback

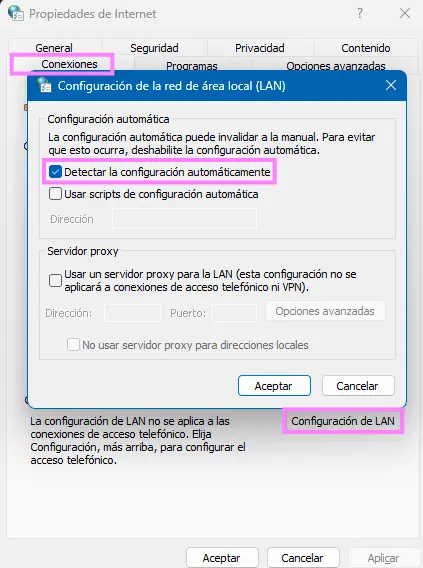

By default, any Windows host has the Automatically detect Proxy settings option enabled in Internet Options

Zoom in

Therefore, a Windows client search for a proxy configuration automatically by trying to discover a PAC file

As stated, this discovery is carried out through DNS, DHCP or an ANYCAST protocol

Once the name resolution is completed and the client knows the IP Address of the given proxy server, it tries to download via HTTP a JS PAC file, which is a file containing all the configuration related to the proxy server

http://wpad.domain.local/wpad.dat

However, if an operator controls the client DNS resolution, either through DHCPv6 Spoofing or by being able to create a WPAD DNS record in the domain zone, and points the WPAD record to the IP Address of a machine under his control, the given client can be forced to establish a connection to the latter

Moreover, this connection requires a subsequent authentication, so an attacker could set up an HTTP server in order to receive the incoming authentication and capture the Net-NTLMv2 hashes or perform a NTLM Relay attack

Global Query Block List

To prevent this issue, Microsoft introduced a Global DNS Query Block list starting with Windows Server 2008. By default, this list contains two values →

  • WPAD
  • ISATAP ( Intra-Site Automatic Tunnel Addressing Protocol ). Also vulnerable

Therefore, any client that sends a query name containing wpad.domain.internal to the DC will receive an NXDOMAIN response indicating that the provided name does not exist, even if it really exists

This means that if an attacker manages to create a DNS record named WPAD in the domain DNS zone pointing to itself, it will not have any effect at all
